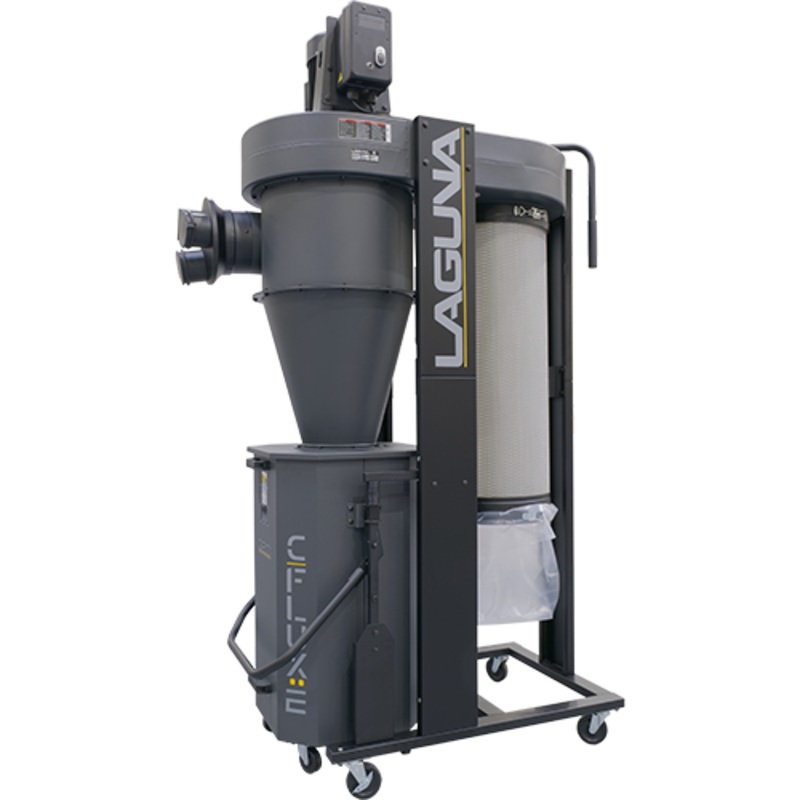

LAGUNA C|Flux: 1

Details

For the popular C|Flux cyclone dust collectors, weve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Owner’s Manual

FEATURES:

• 1.5 HP Motor.
• 1314 CFM Maximum Air Flow.
• 25 Gallon Octagon Drum.

Motor Specs:1.5HP

Electrical Specs:110V/220V / 60Hz / 1PH / 3450 RPM

Running AMP:(with 6 inlet) 18.8A at 110V; 9.4A at 220V

Maximum Air Flow:1314 CFM (Cubic Feet Per Minute)

Shop Setting Air Flow*:900CFM

Max Static Pressure:10.1

Fan Size:13.5

Inlet:One 6 or Two 4 Ports

Remote Control:High Frequency

Collection Capacity:25 Gallon Octagon Drum

Decibel Reading:82 dB (@9.8ft)

Assembled Dimensions (L x W x H):42 x 25 x 68

Packing Size (L x W x H):45 x 28.3 x 47 (114.5 x 72 x 119.5 cm)

Machine Weight:232 lbs. (105 kg)

Shipping Weight:287 lbs. (130 kg)

Filter Specs

Filtering Area:48.4 sq/ft (4.5 sq/m)

Cartridge Filter:1 Micron, 15.74 x 19.68 (40 x 50 cm) x 1pc

* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
