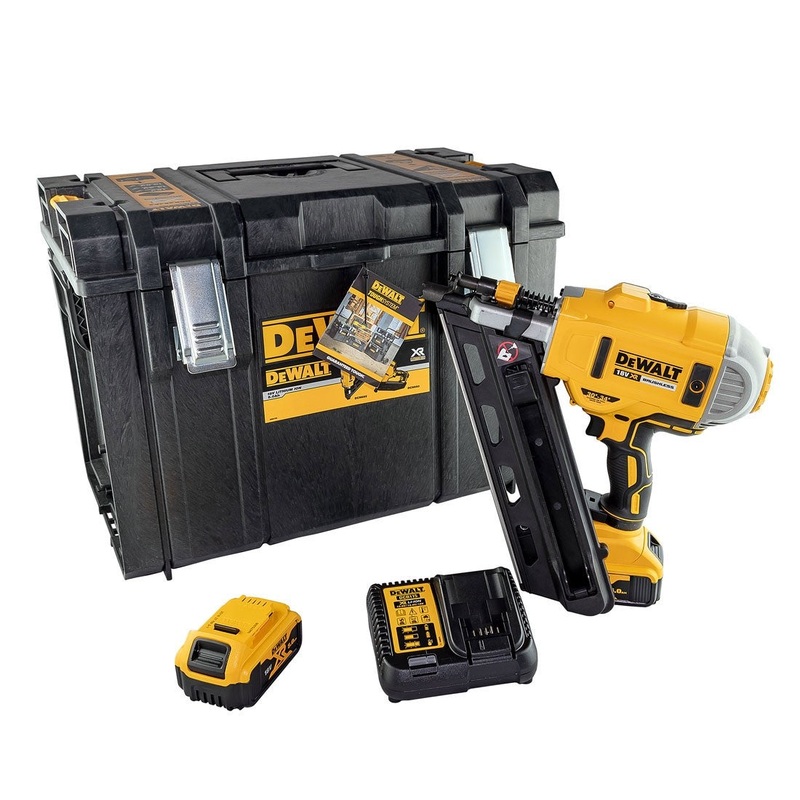

DeWalt DCN692 18V XR Li-Ion 90mm Nailer Kit

Details

Overview

DeWalts 90mm cordless first fix nailer isis an essential fastening tool for a host of applications such as timber frame erection, stud work and roof battens.

The nailer has an ergonomic design, which fits easily between a 400mm centre stud.

The framing nailer is gasless, features tool-free maintenance, and has a versatile 30-34 magazine angle.

Its brushless motor offers optimal power to fire 90mm ring shank nails into soft wood and 63mm into hard woods.

There are two modes; sequential operating mode and bump operating mode. Sequential operating provides precision placement, while bump operating mode speeds up production.

Available as a set or body-only.

Set Includes:

• 1 x Reversible belt hook (as standard)

• 1 x Non-mar tip (as standard)

• 2 x 5.0Ah XR Li-Ion battery packs with state of charge indicator

• 1 x Multi-voltage XR charger

• 1 x Heavy duty carrying case

Features

• Cordless design allows you to work without the inconvenience and safety risk of trailing lead

• Two speeds – or power levels – to optimise the nailer for firing all lengths of nails

• The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed

• Reversable belt/rafter hook provides increased portability and versatility on the job-site

• Benefit from longer runtime, quicker readiness to fire, less recoil and more durability when firing short nails

• Tool free stall/jam clearance minimises user down time

• Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud

• User can engage contact trip lock-off and prevent accidental dis-charge of fastener

• Versatile 30 – 34 degree magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails

• 18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology and XR 5.0Ah battery packs

• BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods

• Depths can be easily adjusted using the thumb wheel depth adjuster

• Increased visibility and durability along with protection for work-surface from the non-mar contact-trip

• Mechanical rather than gas operation offers consistent performance at temperature between -20 and 50 degrees Celsius and minimal cleaning/service requirements

• Gas free operation offers a significant saving in running costs

• Class leading vibration and sound figures, offer fantastic user protection

• Dry fire lockout ensures that the tool is protected from firing without nails in the magazine

Specification

• Input Power: 18 Volt

• Nail Diameter: 2.8-3.3mm

• Nail length: 50-90mm

• Magazine Capacity: up to 55 nails

• Firing mode: Bump and Sequential

• Weight: 4.1kg

DCN692N-XJ
DCN692P2-GB
